 | Our Products |  |
|
The range starts with a 9"*31' paddock auger and goes to a 10"*80' swing away auger.
There are four different drive types.
If after looking at our range there is something special you require please contact us.
|
| Diameter & Length | Drive Type | Notes |
| 9" * 31' | Petrol motor | Choice of Kohler or Honda motors. |
| | | |
| 9" * 41' | Petrol motor | Choice of Kohler or Honda motors. |
| 9" * 41' | PTO | Tractor PTO drive. |
| 9" * 41' | Hydraulic | Tractor remote drive. |
| 9" * 41' | Electric 3 phase | |
| | | |
| 9" * 50' | Petrol motor | Choice of Kohler or Honda motors. |
| 9" * 50' | PTO | Tractor PTO drive. |
| 9" * 50' | Hydraulic | Tractor remote drive. |
| 9" * 50' | Electric 3 phase | |
| | | |
| 10" * 60' | PTO Swing Away | Tractor PTO drive. |
| 10" * 70' | PTO Swing Away | Tractor PTO drive. |
| 10" * 80' | PTO Swing Away | Tractor PTO drive. |
|
In deciding which auger will best meet your requirement please refer to our specification sheet below: |
| Specifications |
| |
| | Conventional Mobile Augers | Swing Away Augers |
| | 9" | 10" |

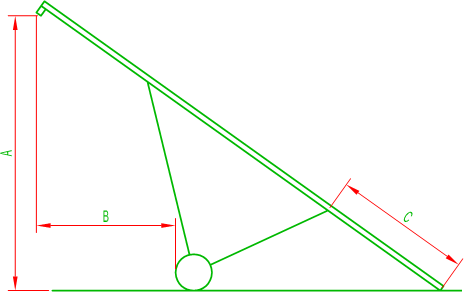

| Height and Reach | 31' | 41' | 50' | 60' | 60' | 70' | 80' |
| A | Lowered | | 11'9" | 10'6" | | 11' | 12' | 12' |
| | Raised | | 26'3" | 27'6" | | 34'3" | 37'10" | 41'6" |
| B | Lowered | | 18' | 23'3" | | 30'6" | 34'6" | 38' |
| | Raised | | 15'6" | 19'6" | | 29'9" | 31'9" | 36'6" |
| C | Intake | | 11' | 11'10" | | | | |
| |
| Recommended HP | 31' | 41' | 50' | 60' | 60' | 70' | 80' |
| Petrol motor | 20 | 20 | 20-25 | 27 | | | |
| PTO | | 40 | 45 | 60 | 60 | 70 | 80 |
| Electric Motor (415v) | 10 | 10 | 10-15 | | | | |
| |
Hydraulics
Oil flow required | 31' | 41' | 50' | 60' | 60' | 70' | 80' |
Tractor remote type
@ 2,000 psi | | 45 l/min | 45 l/min | | | | |
| |
| Capacity Guide | 31' | 41' | 50' | 60' | 60' | 70' | 80' |
Wheat @ 40 degrees
Tonne per hour | 85 | 85 | 85 | 85 | 100 | 100 | 100 |
|
 |
